BD CellView Image Technology is real-time imaging (RTI) technology that combines flow cytometry data with spatial and morphological insights. The technology enables answering complex biological questions quickly, such as how cells grow, function and interact, or studying locations of viruses or proteins within a cell. The technology seamlessly integrates image and flow data on each event and can easily visualize the image for an event during acquisition. It enhances fluorescence activated cell sorting (FACS) with live visual inspection of target cells and novel gating strategies based on real-time image feature analysis using spatial distribution of fluorescence capabilities.

See what you sort.
Sort what you see.

Listen to the conversation between Jochen Lamote, PhD and Jochen Behrends, PhD about BD CellView™ Image Technology. How BD CellView™ Image Technology is chaning their research?

• Seeing is believing means you have a new perspective on the dots in your plots, increasing your sorting confidence.

• Whether you are improving existing applications or developing new ones, CellView is there to address your scientific questions.

• Where the signal originate is the key to develop new applications in various fields.



Want to see more case studies?



Download case studies

BD CellView™ Image Technology versus camera-based imaging cytometry

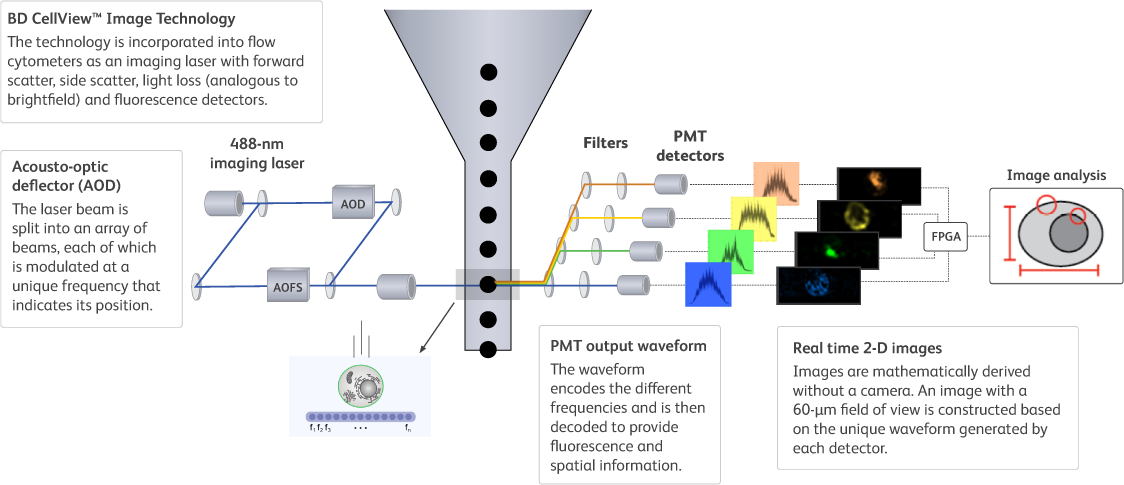

In contrast to camera-based technologies that combine imaging and flow cytometry, BD CellView™ Image Technology does not use a camera to image cells, which enables imaging at much faster rates. Camera-based technologies are limited by closely controlled fluidics and cannot be used for high-speed droplet cell sorting. BD CellView™ Image Technology implements orthogonal frequency domain multiplexing (OFDM) for imaging cells using electronic and optical components already used in flow cytometers. This method allows faster throughput than camera-based technologies. The image data can be acquired and quantified in real time at high speed for analysis and sorting as the sample is being acquired.

Principles of BD CellView™ Image Technology





Image Feature Definitions



Eccentricity



Eccentricity is a ratio of the shortest to the longest axis of the identified particle (as identified by the region of analysis)



Usage examples: Doublet discrimination, cluster identification



Availability: All imaging channels

performance1

Max Intensity

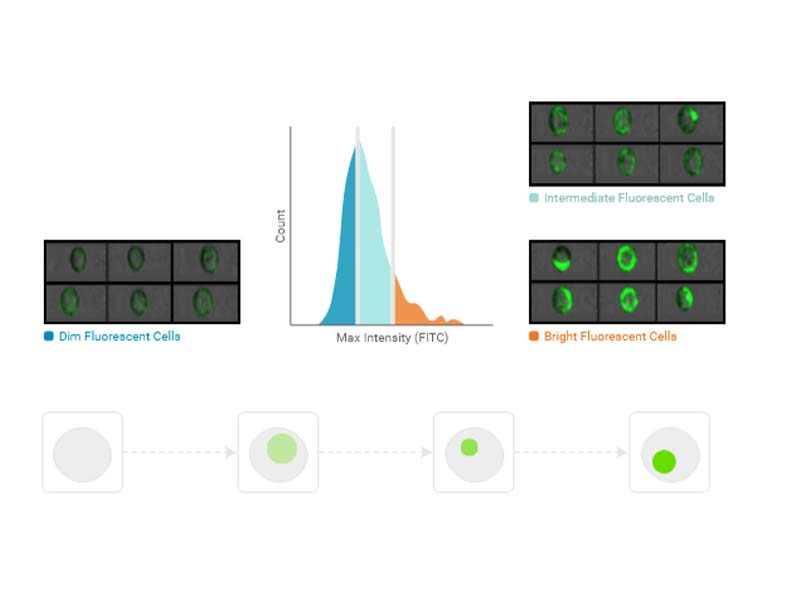

Max intensity is the intensity of the brightest pixel in the image. It is not affected by the region of analysis.



Usage examples: Punctate fluorescence, phagocytosis assay, cell cycle analysis



Availability: All imaging channels

performance1

Size

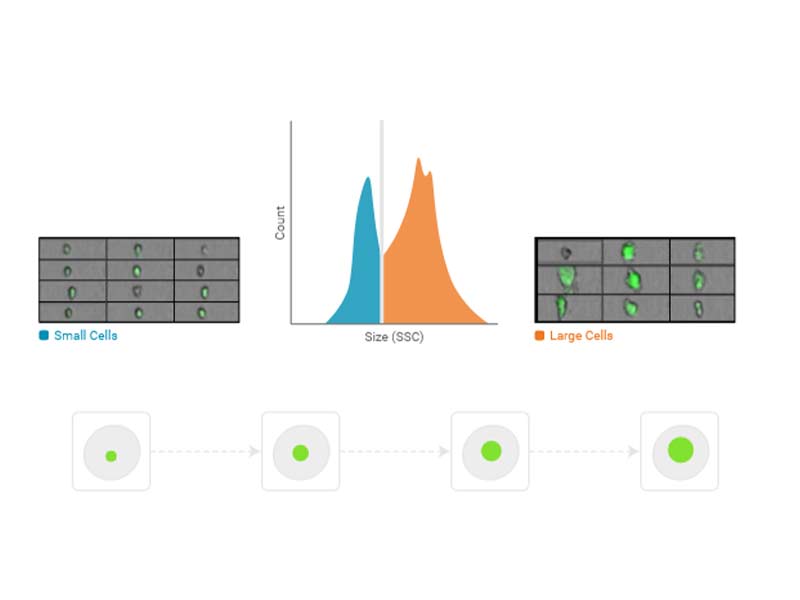

Size is the number of pixels in the image, which are brighter than a user-defined pixel threshold.



Usage examples: Label-free sorting, punctate fluorescence



Availability: All imaging channels

performance1

Radial Moment

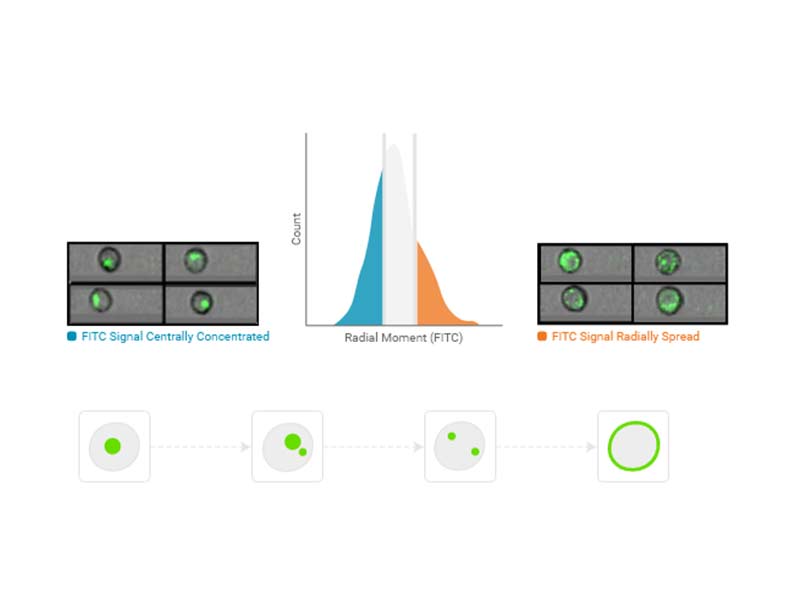

Radial moment is the average distance of the pixels from the centroid within the region of analysis.



Usage examples: Doublet discrimination (with Eccentricity), cell—cell interactions (cellular synapse)



Availability: All imaging channels

performance1

Correlation

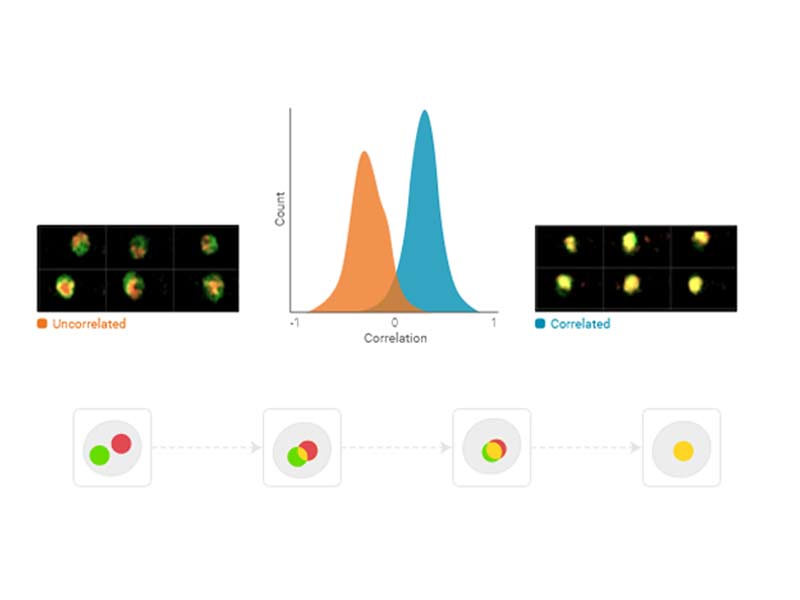

Correlation is the degree to which the location of two imaging channels are the same within the region of pixels defined by the region of analysis.



Usage example: Translocation assay



Availability: Any two imaging fluorescence channels

performance1

Delta Center of Mass

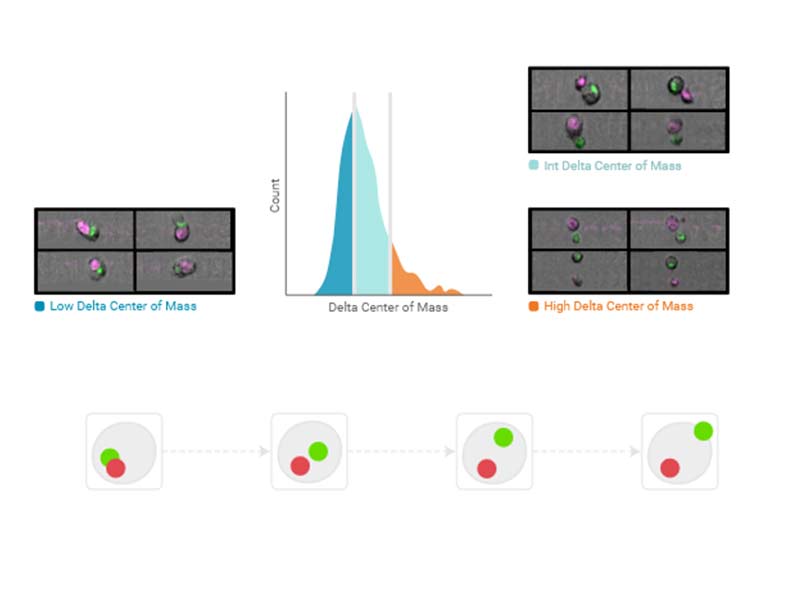

The distance between two fluorescent signal sources in any two imaging channels within a particle as defined by the region of analysis.



Availability: Any two imaging channels

performance1

Forward Scatter (FSC)



As particles (cells) pass through the laser, the interaction of the light with the particle results in scatter in all directions.

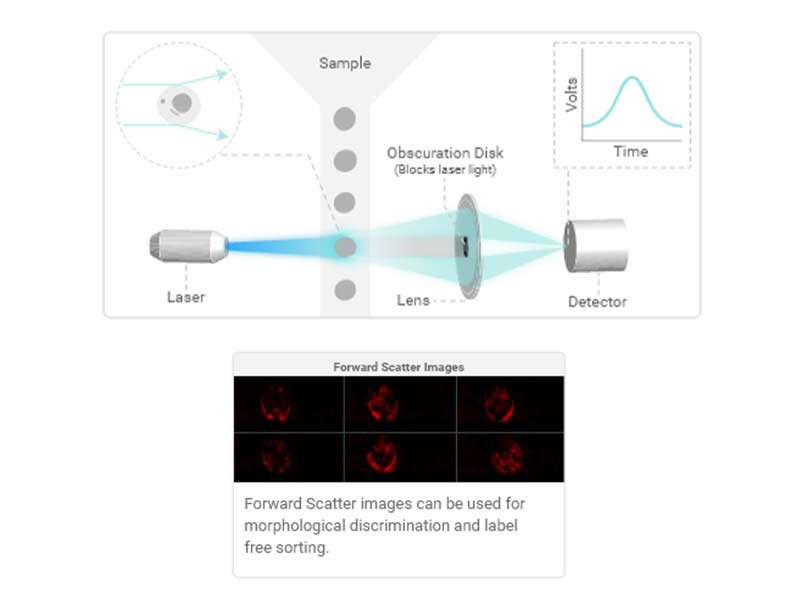

The forward scatter detector is placed in line with the laser path to measure light that is scattered at small angles. forward scatter loosely correlates to particle (cell) size.

performance1

Side Scatter (SSC)



As particles (cells) pass through the laser, the interaction of the light with the particle results in scatter in all directions.

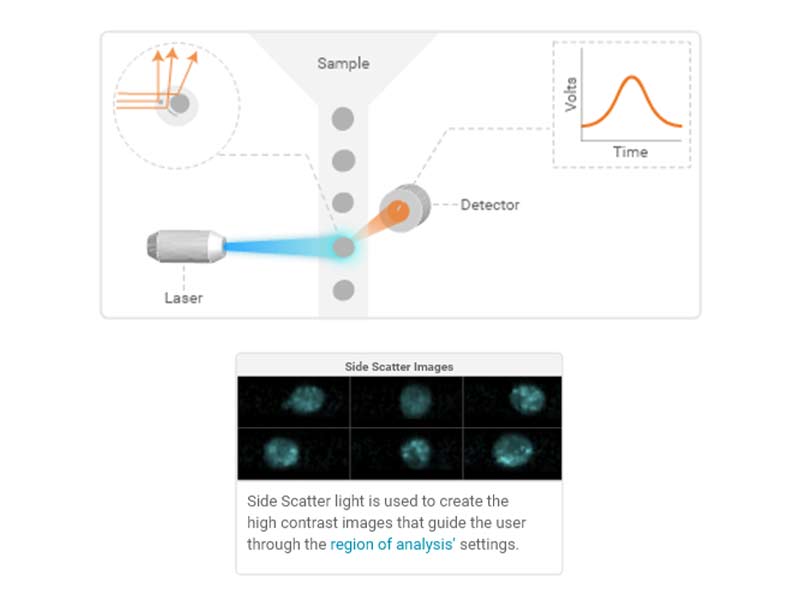

The side scatter detector measures light that is scattered perpendicular (90°) to the laser path. Side scatter loosely correlates to optical density or complexity of the particle.

performance1

Light Loss (Imaging)



As particles (cells) pass through the laser, the interaction of the light with the particle results in scatter in all directions.

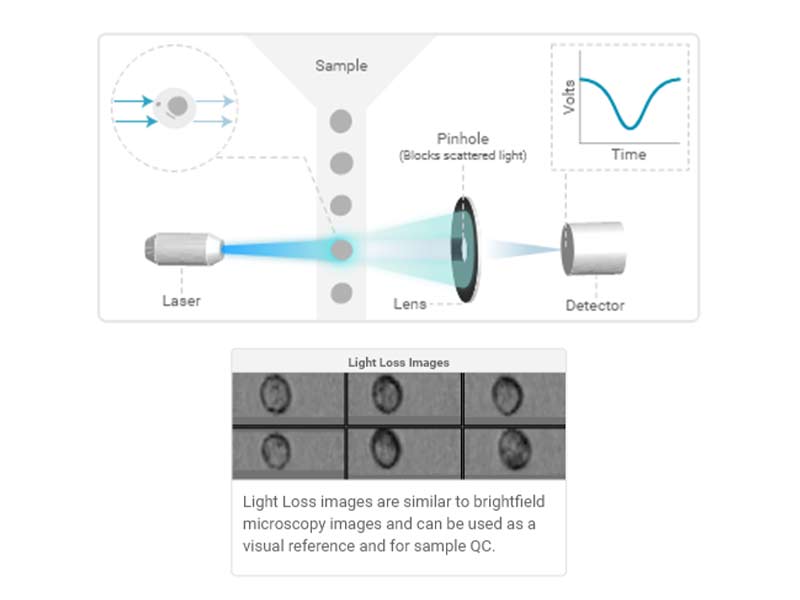

Light loss is a measure of light (photons) lost from the laser due to scattering and absorption of light by a particle (cell).

performance1
Sample Data
Down Arrow Up Arrow

Using Image Features to Measure the Relative Location of Fluorescence Signals and Track Morphological Changes in Cell Populations

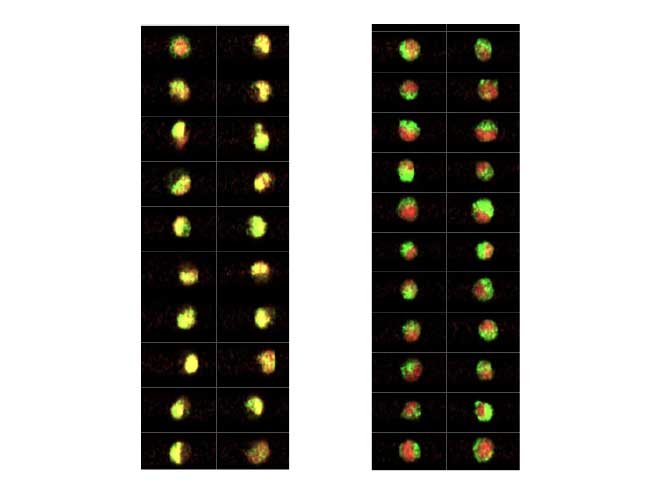

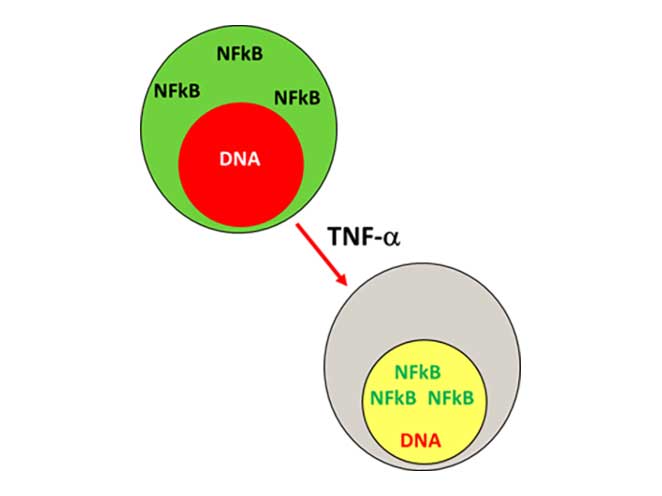

HT-1080 fibrosarcoma cells were treated with TNF-a and then subsequently fixed, permeabilized and stained for p65 (NFκB) using a secondary FITC-labeled antibody. The cells were then counterstained with the DNA stain DRAQ5™. BD CellView™ Image Technology enables the measurement of the relative spatial correlation between the NFκB FITC signal and the DNA DRAQ5™ signal. A correlation score of 1 indicates that both signals occupy the same space spatially.

performance1

Doublet Discrimination Using Imaging Features to Bolster Purity

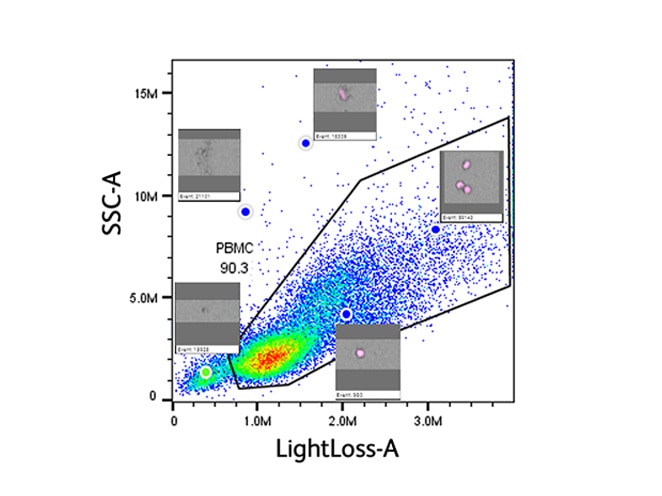

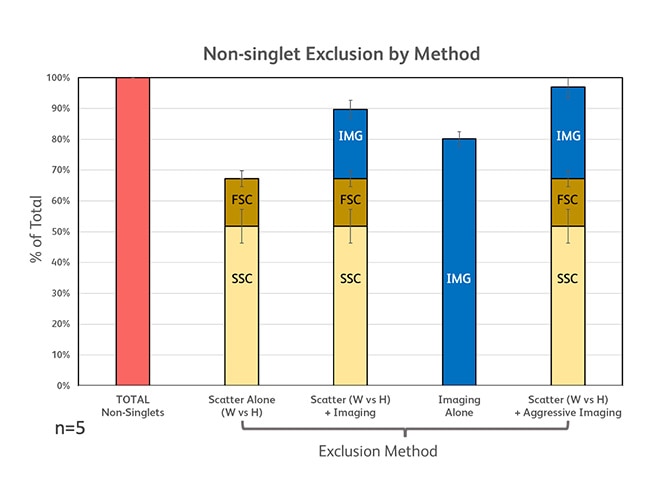

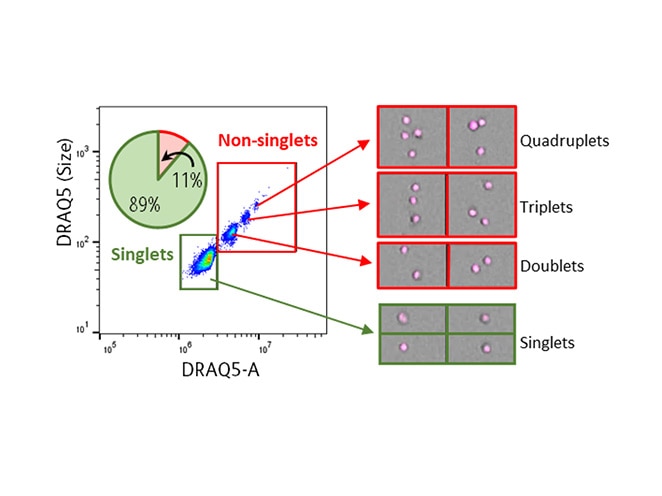

Doublet and clump exclusion is a critical preliminary step in establishing a pure sort. Doublets can confound purity and can lead to unwanted results or unnecessary expense when performing downstream functional and/or genomic analyses. Here we sought to demonstrate the improvements in doublet discrimination that an image enabled sorter can offer. Peripheral blood mononuclear cells (PBMCs) were prepared by Ficoll™ separation from five healthy donors. Sample preparations were counterstained with DRAQ5™, a membrane permeable, DNA intercalating dye that is compatible with BD CellView™ Image Technology. Doublet frequency was tracked via DNA content as traditional scatter-based doublet discrimination strategies were compared with an image-based approach. Singlet vs non-singlet (doublets and clumps) content in each gate was compared.

performance1

Identifying all stages of cell cycle using imaging features

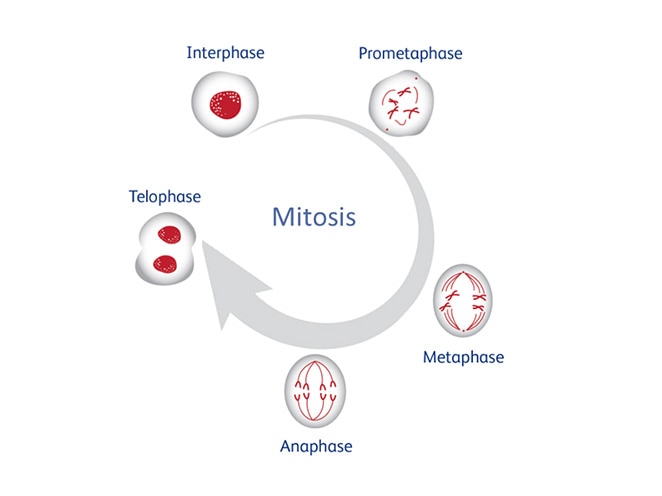

Each of the five stages of mitosis—interphase, prometaphase, metaphase, anaphase and telophase—are characterized by a particular chromosomal morphology and/or cell shape that can be used to separate these stages.

performance1

Measuring translocation

HeLa cells expressing fluorescently tagged NFκB with DRAQ5™ DNA counterstain

playIcon
Solutions
Down Arrow Up Arrow

Combining BD CellView™ Image Technology and BD SpectralFX™ Technology

The BD FACSDiscover™ S8 Cell Sorter uses BD CellView™ Image Technology and BD SpectralFX™ Technology and combines spectral flow cytometry with real-time spatial and morphological insights.



The cell sorter:

  • Provides insights on cell populations and characteristics that can be visually confirmed in real time during analysis and sorting
  • Enhances spectral flow cytometry with spatial and morphological insights to interrogate and sort cell types that previously could not be identified or isolated
  • Simplifies workflow with built-in visual inspection capabilities, more flexible panel design and automated features
  • Allows creating a comprehensive profile of highly complex diseases and systems with correlation of downstream analysis with imaging and traditional flow data
Learn More





For Research Use Only. Not for use in diagnostic or therapeutic procedures. CF is a trademark of Biotium, Inc.
Class 1 Laser Products.
